Product Core Features

The HL series freeze dryers are an excellent entry-level solution, with a minimum batch capacity of 1 kg. Their lightweight design breaks down production limitations no dedicated factory or office is required; they can be easily put even in home spaces or small stores. The installation-free design and minimal footprint makebuy and usea reality, and their affordable pricing lowers the barrier to entry for freeze-drying technology, providing a cost-effective option for entrepreneurs, food enthusiasts, and small family businesses.The product boasts both versatility and exceptional ease of use: its voltage, frequency, and plug specifications are fully compatible with global standards, and the user interface supports local language customization.
A one-button start function, coupled with pre-set freeze-drying recipes for various food categories, allows for quick and easy operation without requiring specialized knowledge. It also supports preset constant temperature heating and custom parameter settings to meet diverse needs, from daily storage to professional production. For fresh ingredients, cooked foods, and pet food, it enables rapid freeze-drying preservation, precisely locking in nutrition and flavor. Its core performance highlights are particularly noteworthy: operating noise of single phase machine is strictly below the environmental standards for residential areas, ensuring a quiet and undisturbed environment; it adopts in-situ refrigeration technology, eliminating the need for an additional refrigerator, allowing fresh ingredients to be placed directly into the freeze-drying process; its energy-optimized design makes it more economical, with most models requiring only single-phase power, and only large-capacity models available with three-phase power, effectively reducing operating costs.

Advantages of freeze-dry

Freeze-dried products perfectly retain the original shape, natural color, and over 99% of the nutrients of the ingredients, with a shelf life of up to 25 years. They rehydrate quickly and with high recovery rates, making them suitable for freeze-dried vegetables, meats, pet food, convenience foods, and many other products, truly achieving "one machine for multiple uses." Utilizing a high-performance compressor, batch processing speed is twice that of similar products in the United States. With an optional chamber circulation fan, the freezing process can be accelerated, further improving freeze-drying quality and efficiency.

Detailed design optimization

The high-density heating resistance wire design ensures uniform tray temperature and avoids incomplete freeze-drying in certain areas;
The software features an intuitive and easy-to-understand temperature control mode, reducing the difficulty of operation, while also supporting stage recipe editing, catering to both basic use and professional needs. It supports customizable upper and lower pressure limits to accurately match different recipes requirements and achieve controllable freeze-dried quality.

Core Technologies and Security Assurance

Precision temp. control

Precision temp. control

Equipped with two core technologies: PID precision temperature control and distributed step temperature control. Its preset parameters fit most application scenarios without frequent adjustment. It supports editable temperature control programs (temperature & time adjustment), with password authorization for parameter modification. Fully compliant with FDA regulations, it ensures consistent batch product quality and better meets product development and recipe optimization needs.
Eco-friendly refrigerant

Eco-friendly refrigerant

Standard configuration includes R507A refrigerant, with R448A optional. Both meet EU and North American environmental standards, pose no risk of ozone layer depletion, and have low carbon emissions. Compared to the highly flammable and high-pressure explosive R1270 (pressure reaches 1.16Mpa at 25℃), this series of refrigerants is safer, requires no explosion-proof design, and has a wider range of compatibility.
Reliable vacuum system

Reliable vacuum system

It adopts aerospace-grade high-vacuum connectors with superior vacuum sealing and long-term stability. We strictly reject low-cost rough vacuum hook connectors applicable to 10³–10⁻³ Pa only. By using premium high-vacuum fittings, we eliminate vacuum leakage risks at the source, guaranteeing stability and consistency of the freeze-drying process.
Robust protective structure

Robust protective structure

The frame is made of high-strength carbon steel with a powder coating process, which has excellent compressive strength, high protection level and anti-static performance, and has significant advantages over extruded aluminum frames; the tray adopts a one-time pressed rounded corner design, avoiding right-angle structure that traps dirt and is difficult to clean, making cleaning and maintenance more convenient.

Applications and Services

The HL series freeze dryers are widely applicable for human food, pet food, emergency food production. Whether for homemade freeze-dried snacks, small- batch specialty food production for small businesses, or laboratory recipes development, they are highly efficient and adaptable. OEM customization services are supported, allowing for adjustments to recipe to meet different application needs.
Strict quality control standards

Strict quality control standards

Each machine undergoes several days of full-parameter quality testing before leaving the factory to ensure that all components operate in accordance with standards and to prevent defective products from entering the market.
Responsible after-sales service

Responsible after-sales service

If a product has a factory defect, we resolutely abandon the excuse of warranty terms, take the initiative to assume responsibility and provide efficient solutions to protect customers' rights.
Technology Upgrade Guarantee

Technology Upgrade Guarantee

We continuously invest in R&D and achieve quality iteration through detailed improvements - cooling is improved by 35%. It is meticulously crafted by senior engineering team and adheres to the concept of high-standard manufacturing.
HL Series Technical Parameter

HL Series Technical Parameter

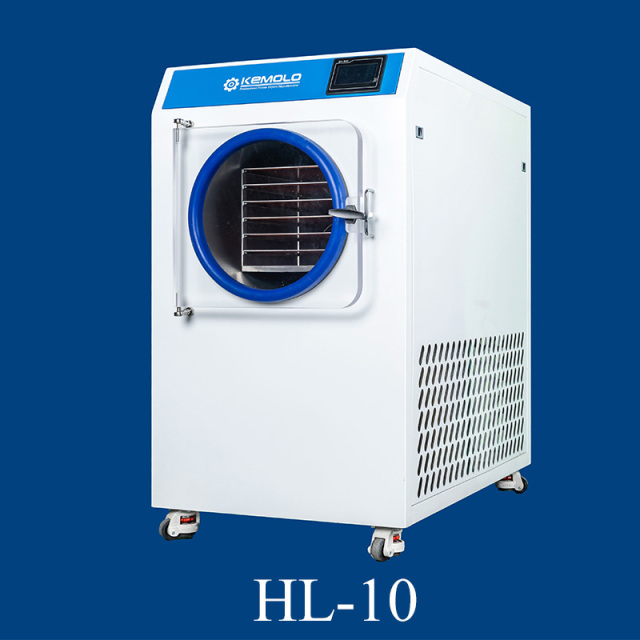

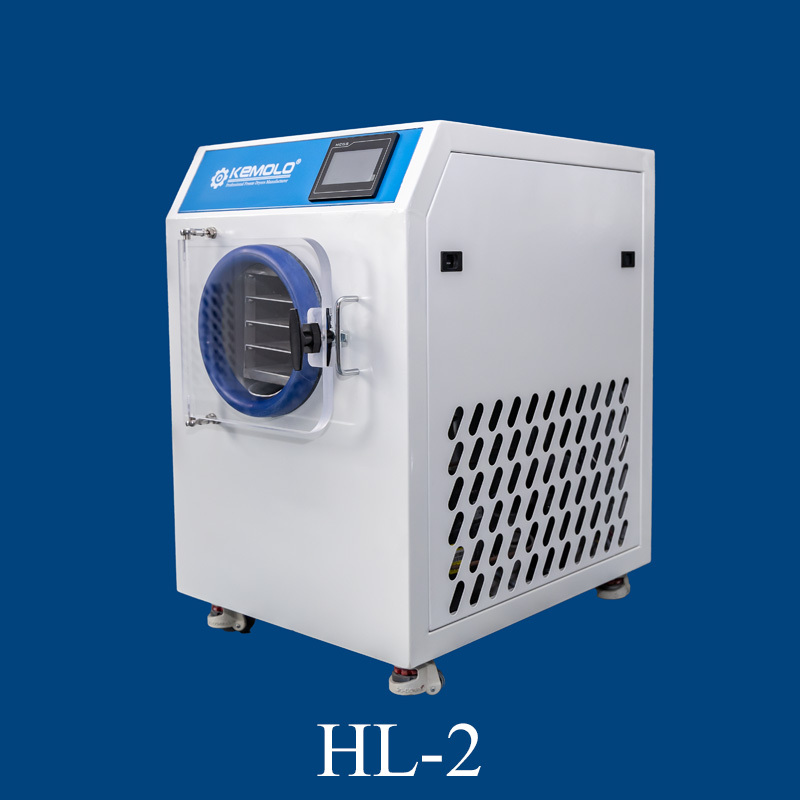

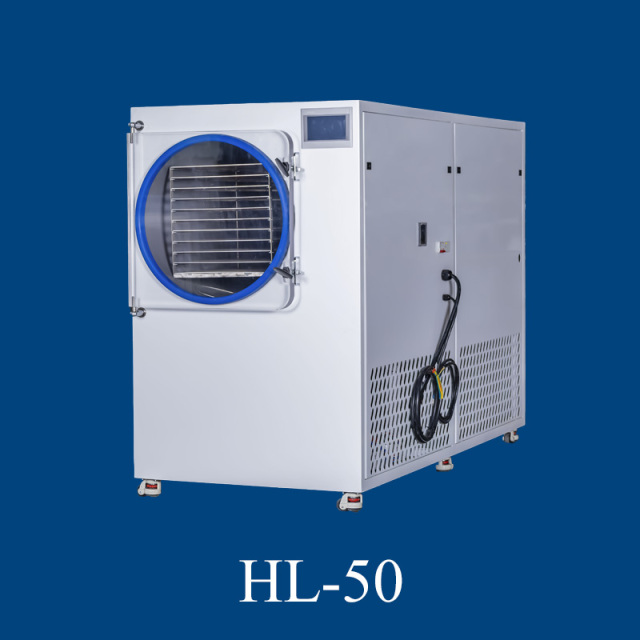

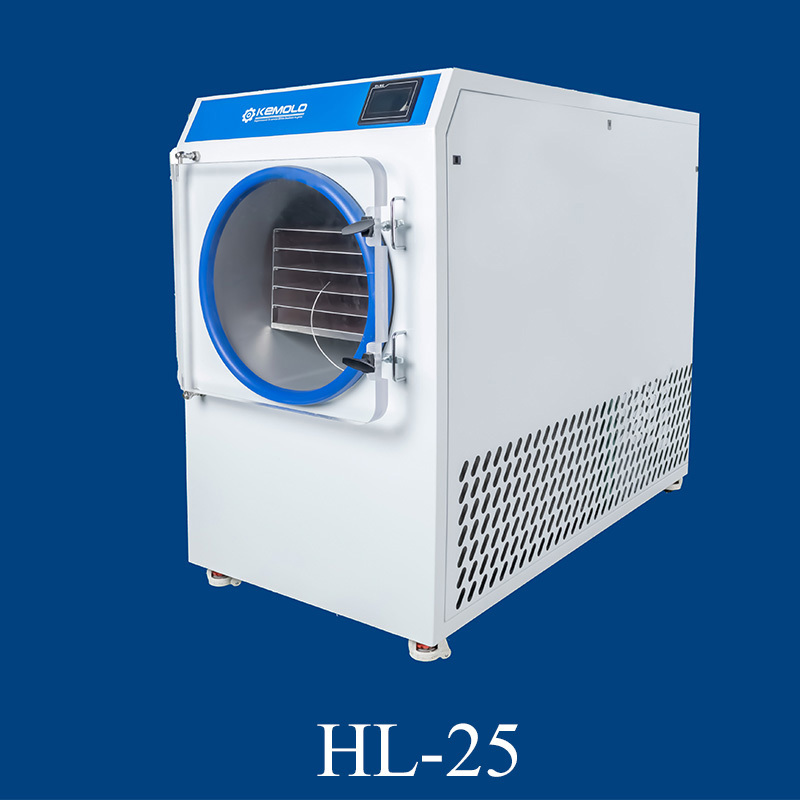

Model HL-1 HL-2 HL-5 HL-10 HL-25 HL-50 HL-100 HL-250
Capacity 1kg 2kg 5kg 10kg 25kg 50kg 100kg 250kg
Condenser -35°C -35°C -35°C -35°C -35°C -40°C -40°C -40°C
Shelf(°C) -30 to 40 -30 to 40 -30 to 40 -30 to 40 -30 to 40 -30 to 40 -30 to 40 -30 to 40
Product(°C) -30°C -30°C -30°C -30°C -30°C -30°C -30°C -30°C
Shelf(m²) 0.1m² 0.2m² 0.5m² 1m² 2.5m² 5m² 10m² 25m²
Compressor included included included included included included included included
Refrigerant R507A R507A R507A R507A R507A R507A R507A R507A
Cooling Air Air Air Air Air Air Air Air
Vacuum included included included included included included included included
Pressure 15 Pa 15 Pa 15 Pa 15 Pa 15 Pa 15 Pa 15 Pa 15 Pa
Defrost Hot air Hot air Hot air Hot air Hot air Hot air Hot air Hot air
Power 0.8kw 1.2kw 2.5kw 3.5kw 7kw 12kw 22kw 40kw
Voltage 115/220V 115/220V 115/220V 115/220V 400/460V 400/460V 400/460V 400/460V
Installation 1 m² 1 m² 2 m² 3 m² 4 m² 8 m² 10 m² 20 m²
Dimension (m) 0.55×0.53×0.7 0.75×0.53×0.81 0.86×0.65×1.06 1.21×0.65×1.15 1.67×0.76×1.3 2.2×1.2×1.5 2.2×1.6×1.8 3.5×1.8×2.0
Weight (kg) 100 160 230 305 540 1000 1500 2500
Model HL-1 HL-2 HL-5 HL-10
Capacity1kg2kg5kg10kg
Condenser-35°C-35°C-35°C-35°C
Shelf(°C)-30 to 40-30 to 40-30 to 40-30 to 40
Product(°C)-30°C-30°C-30°C-30°C
Shelf(m²)0.1m²0.2m²0.5m²1m²
Compressorincludedincludedincludedincluded
RefrigerantR507AR507AR507AR507A
CoolingAirAirAirAir
Vacuumincludedincludedincludedincluded
Pressure15 Pa15 Pa15 Pa15 Pa
DefrostHot airHot airHot airHot air
Power0.8kw1.2kw2.5kw3.5kw
Voltage115/220V115/220V115/220V115/220V
Installation1m²1m²2m²3m²
Dimension (m)0.55×0.53×0.70.75×0.53×0.810.86×0.65×1.061.21×0.65×1.15
Weight (kg)100160230305
Model HL-25 HL-50 HL-100 HL-250
Capacity25kg50kg100kg250kg
Condenser-35°C-40°C-40°C-40°C
Shelf(°C)-30 to 40-30 to 40-30 to 40-30 to 40
Product(°C)-30°C-30°C-30°C-30°C
Shelf(m²)2.5m²5m²10m²25m²
Compressorincludedincludedincludedincluded
RefrigerantR507AR507AR507AR507A
CoolingAirAirAirAir
Vacuumincludedincludedincludedincluded
Pressure15 Pa15 Pa15 Pa15 Pa
DefrostHot airHot airHot airHot air
Power7kw12kw22kw40kw
Voltage400/460V400/460V400/460V400/460V
Installation4m²8m²10m²20m²
Dimension (m)1.67×0.76×1.32.2×1.2×1.52.2×1.6×1.83.5×1.8×2.0
Weight (kg)540100015002500
